Fabric laser machine range / 7 models
Compare working area, laser power, vision system, feeding method, and head count across DOWIN's fabric cutting platforms.
Jump to comparison7 machines, from compact film cutting to wide-format roll-fed fabric.
DW-9070Automatic contour cutting for printed DTF transfer film, designed to recognize printed graphics and process roll or sheet material with limited operator intervention.
DW-1313-ZJ-CA combined Galvo and X-Y gantry CO2 system for fast perforating, kiss cutting, engraving, and cutting across textile, PU, and vinyl materials.
DW-1812 ProA large-format automatic fabric cutter with industrial camera recognition, independent guide rails, auto feeding, and optional single or double laser heads.
DW-1820SA wider-format fabric laser cutter with two asynchronous cutting heads on independent guide rails and a 1800 × 2000 mm one-pass cutting area.

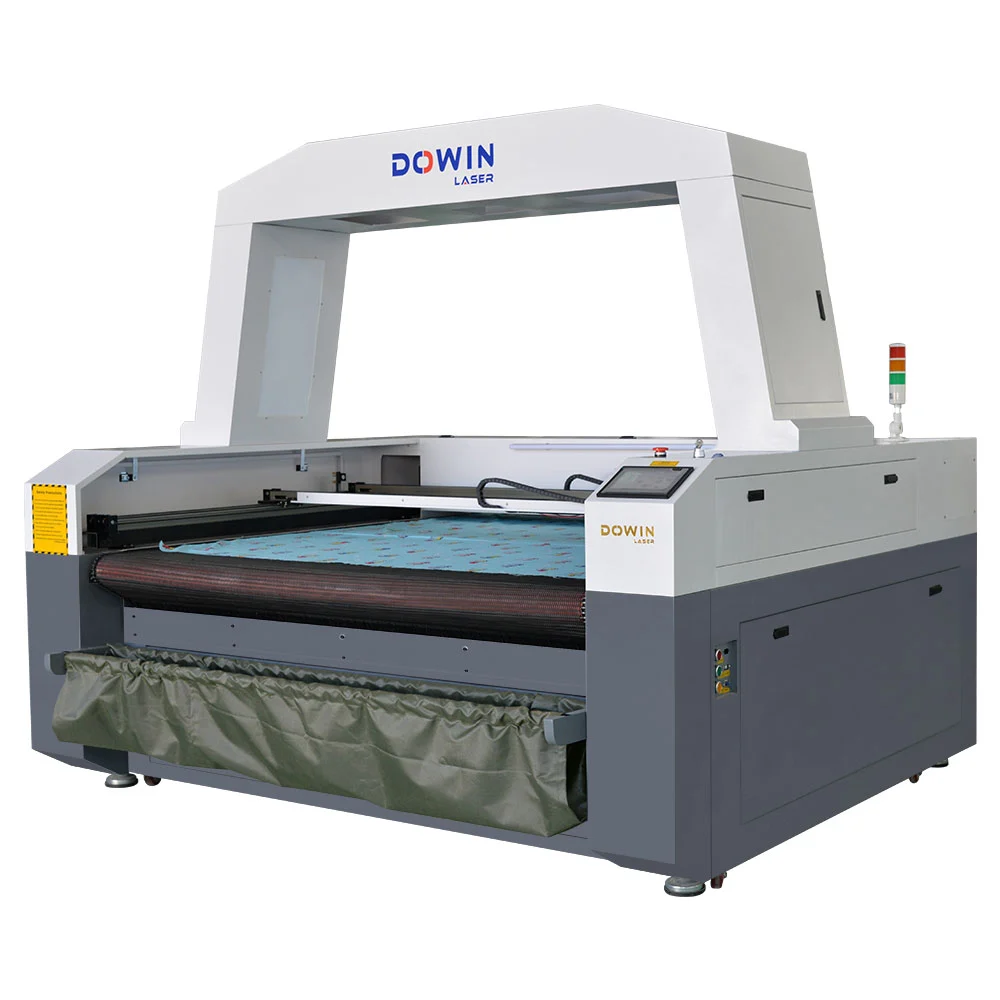

DW-1812CCDA top-camera fabric laser cutter that captures printed outlines across the work area, creates the cutting path, and processes roll materials automatically.

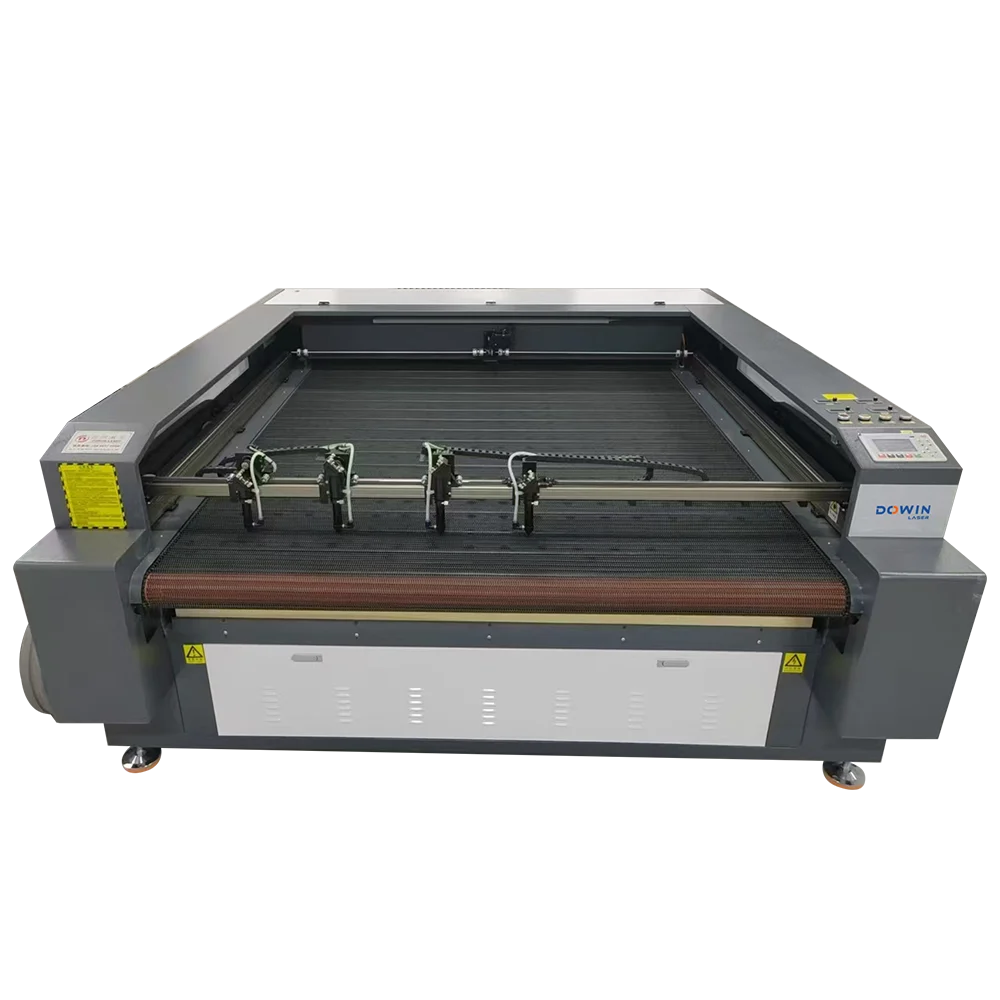

DW-1812 Four-HeadA four-head version of the automatic vision fabric cutter for parallel processing across printed and flexible materials.

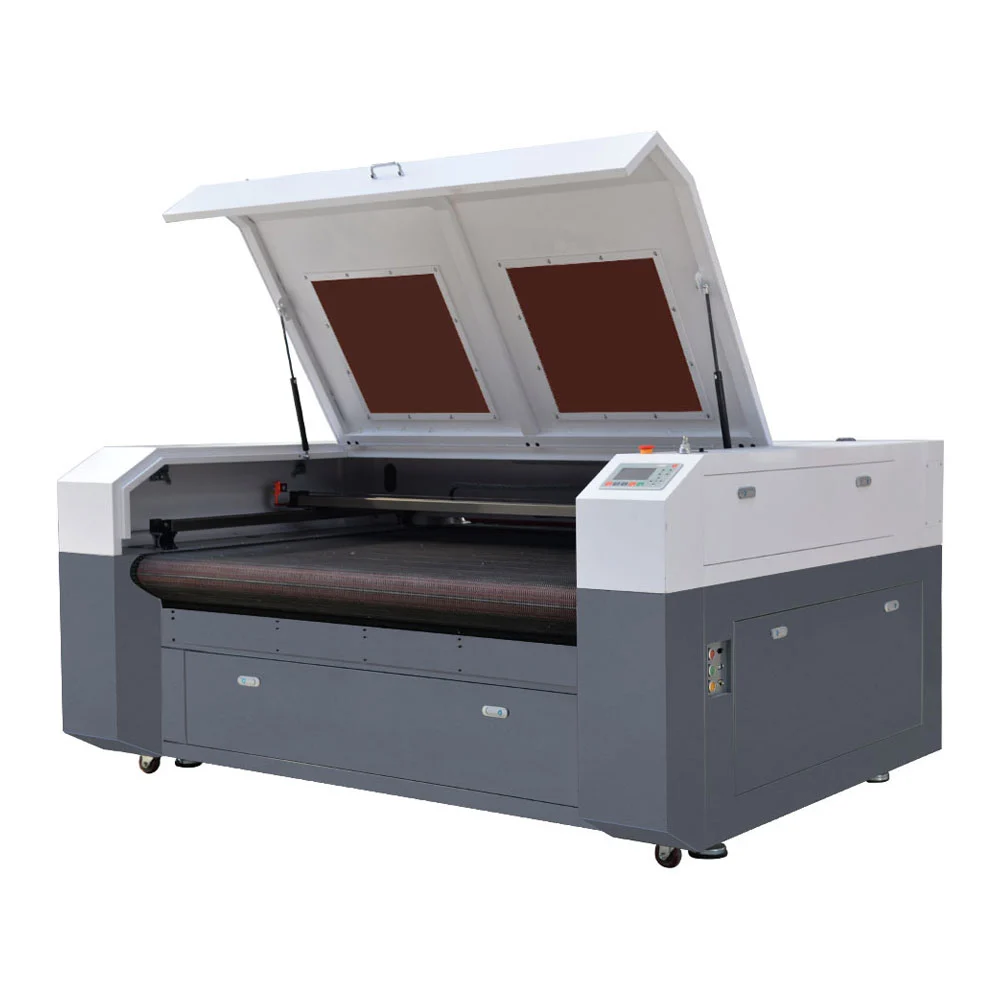

DW-1610AFA 1600 mm-wide conveyor laser cutter synchronized with a powered roll feeder for continuous flexible-material cutting and occasional flat-sheet work.
Side-by-side selection
Published specifications help narrow the shortlist. Final machine configuration should be confirmed against your material sample and production target.
| Model | Working area | Power | Vision | Feeding | Heads | Best for |
|---|---|---|---|---|---|---|
| DW-9070 | 9070 format | CO2 laser | Camera registration for edge and mark recognition | Automatic loading and unloading | Single | DTF print shops processing logos, labels, sportswear transfers, and custom graphics |
| DW-1313-ZJ-C | 1300 × 1300 mm | 100 W | CCD camera for Galvo calibration | Honeycomb platform | Single | Textile perforating, small-detail hollowing, PU leather engraving, and heat-transfer vinyl kiss cutting |
| DW-1812 Pro | 1800 × 1200 mm | 80 / 100 / 130 / 150 W | Hikvision MV-CS200 wide-angle industrial camera | Automatic roll feeding and correction frame | Single or double, optional | Printed and plain textiles, leather, signage materials, packaging, and large-format continuous production |
| DW-1820S | 1800 × 2000 mm | Confirm selected configuration | Industrial vision recognition | Automatic roll feeding and correction frame | Two asynchronous heads | Wider textile panels, canvas, garment production, home textiles, and continuous roll processing |
| DW-1812CCD | 1800 × 1200 mm | 130 / 150 W | Top-mounted Hikrobot industrial camera | Automatic conveyor and rolling system | One or two, optional | Printed sportswear, labels, flags, footwear, bags, leather products, toys, upholstery, and home textiles |
| DW-1812 Four-Head | 1800 × 1200 mm | 130 / 150 W | Top-mounted industrial camera | Automatic conveyor and rolling system | Four-head model | Higher-throughput garment, label, footwear, bag, leather, and textile production |
| DW-1610AF | 1600 × 1000 mm | 80 / 100 / 130 / 150 W | File-based positioning; camera not listed as standard | Synchronized conveyor and powered roll feeder | Single standard configuration | Garment accessories, shoe uppers, bags, automotive interiors, leather, composite fabric, and roll materials up to 1600 mm wide |
