DW-9070

9070 Laser Cutter for DTF Film

Automatic contour cutting for printed DTF transfer film, designed to recognize printed graphics and process roll or sheet material with limited operator intervention.

Best fit: DTF print shops processing logos, labels, sportswear transfers, and custom graphics

Working area: 9070 format
Laser power: CO2 laser
Vision system: Camera registration for edge and mark recognition
Feeding: Automatic loading and unloading
Laser heads: Single

Request a quote Compare models

Product overview / DW-9070

Built around your material and production flow.

The DW-9070 is listed by DOWIN for contour cutting printed DTF and TPU transfer film. Its camera-guided approach identifies printed graphics so the cutting path can follow individual logos, labels, and apparel transfers instead of a fixed rectangular trim.

The original product page discusses rolls and sheets, automatic loading, and cutting after film printing. Share the film type, print marks, desired cut style, and roll width so DOWIN can confirm the appropriate configuration.

See how it works

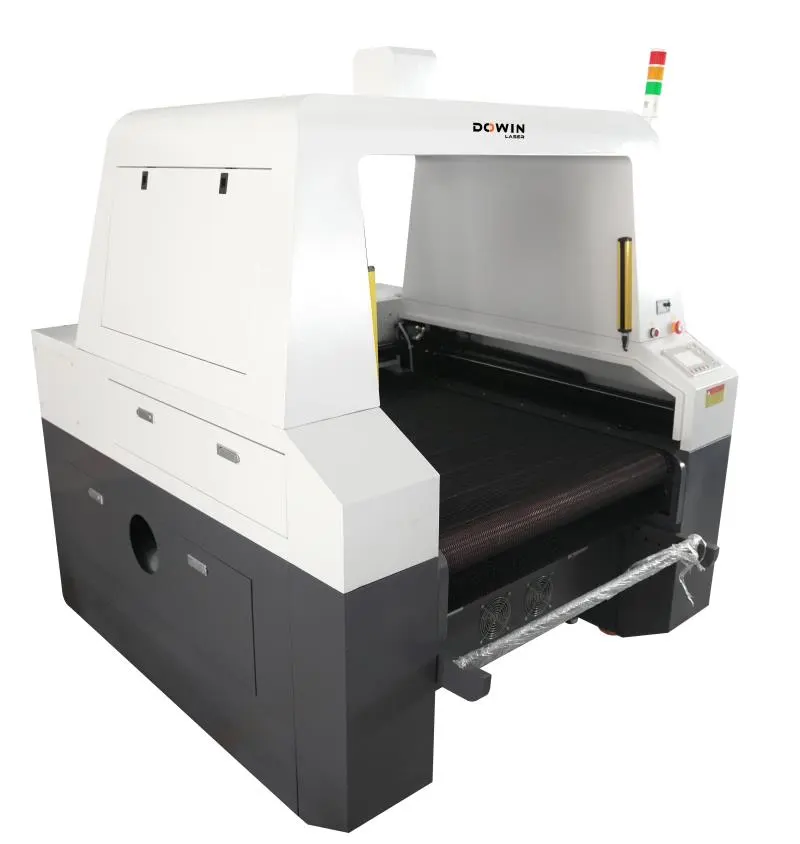

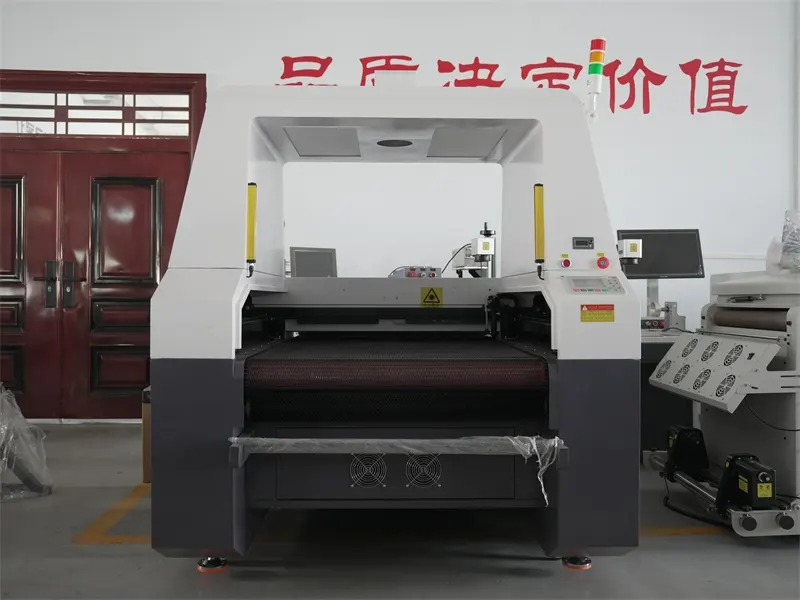

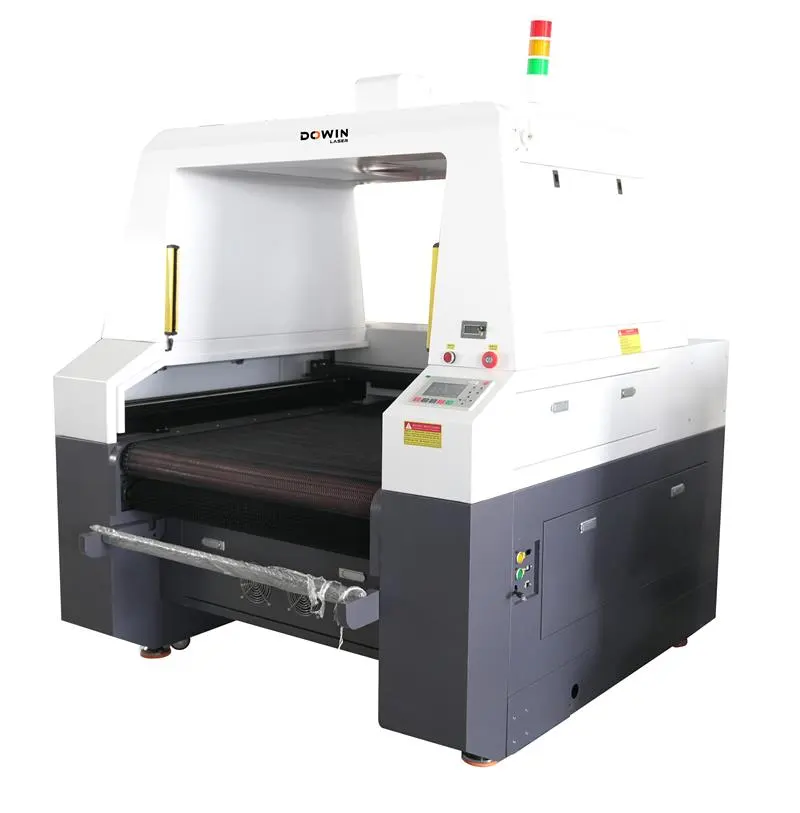

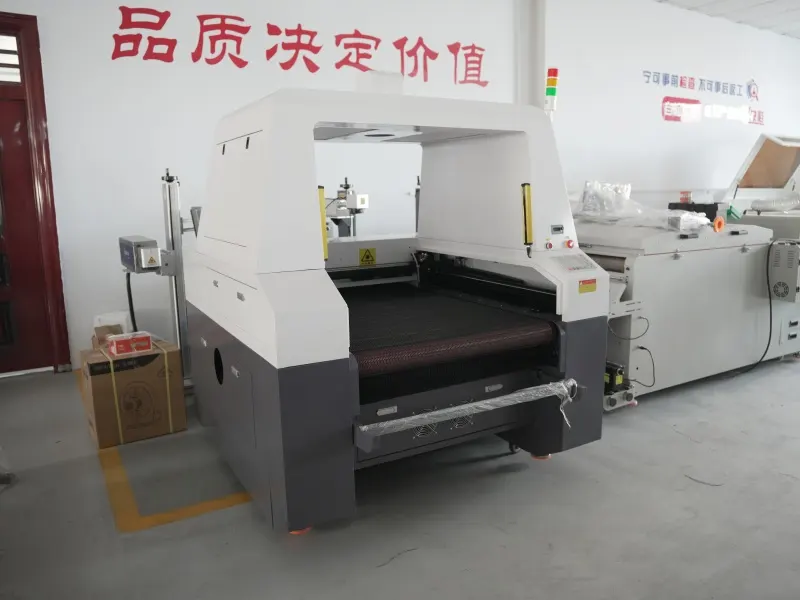

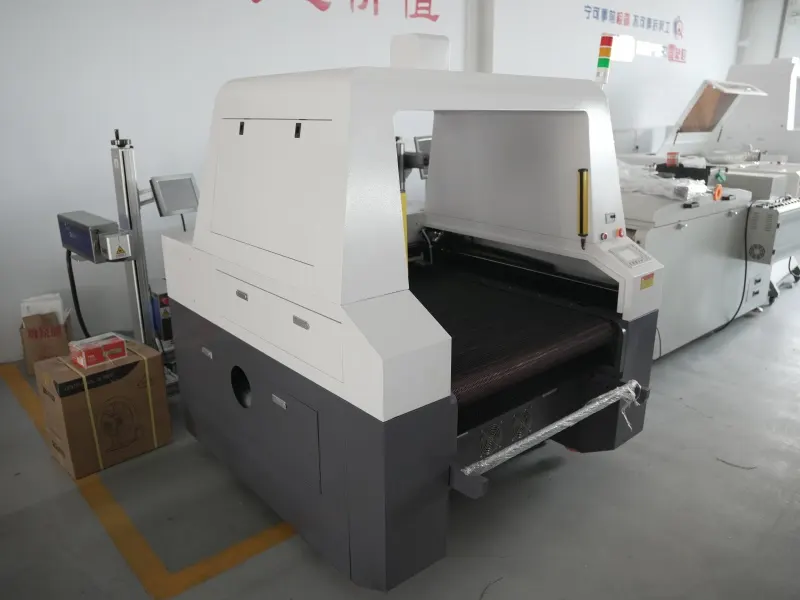

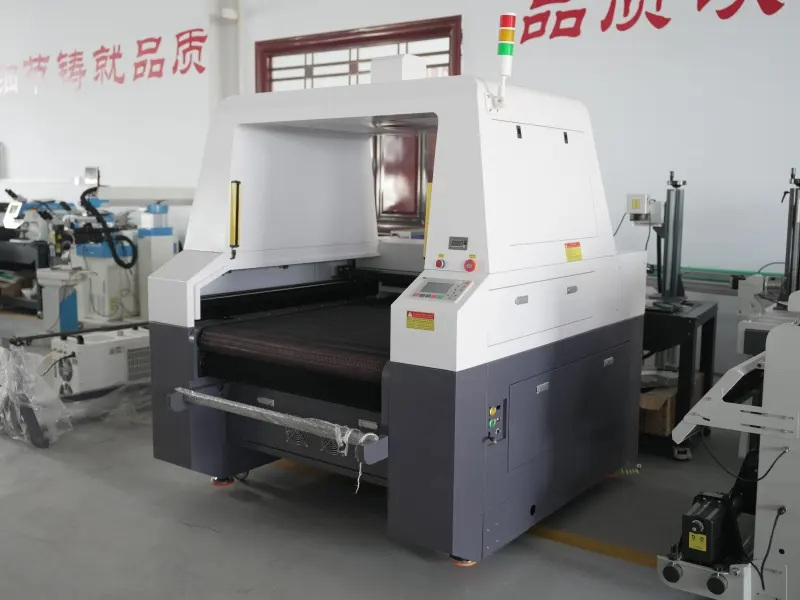

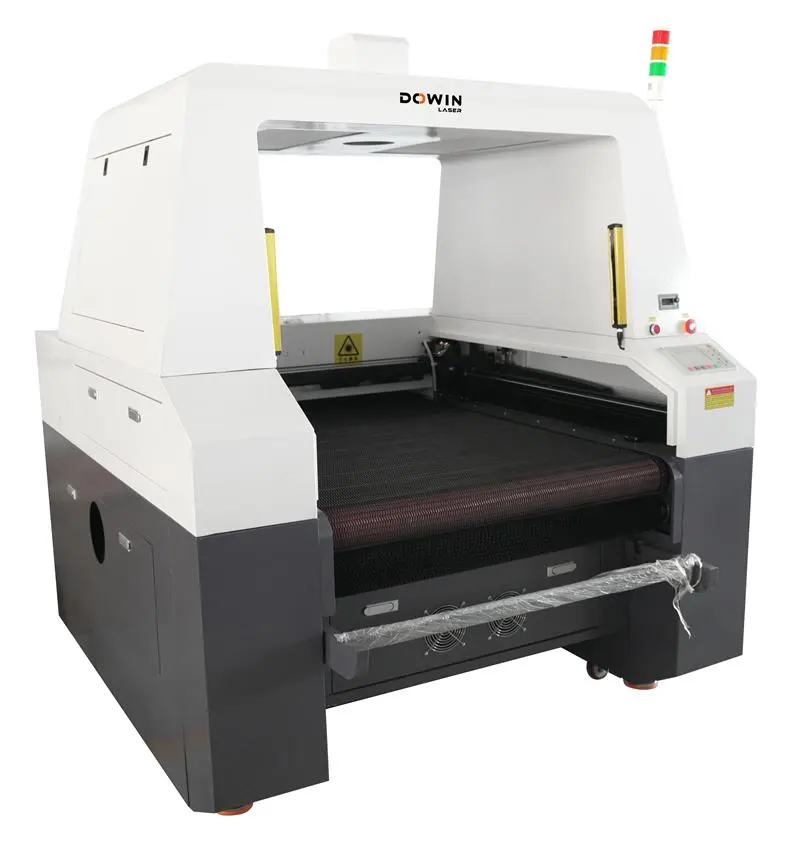

Official DOWIN DW-9070 machine view — Equipment image from DOWIN's published product page.

From material to finished part

How DW-9070 works.

The working sequence below follows the capabilities described in DOWIN's original listing. Feed, vision, laser, and collection settings should be tested on your material.

01
Present the printed film
Feed a roll or place sheets with the printed graphics visible to the registration camera.
02
Register the artwork
Use camera recognition of edges or marks to locate each graphic against the cutting area.
03
Cut the contour
Match the cut path to the graphic. Confirm kiss-cut versus through-cut behavior on a sample film.
04
Collect the transfers
Remove the cut graphics for sorting or the next heat-transfer step.

Machine capabilities

What this configuration is designed to do.

Camera registration for contour cutting

Roll-to-roll workflow

Supports kiss-cut and through-cut workflows

Automatic nesting support

Published specifications

Positioning accuracystated as ±0.1 mm

Material focusprinted PET and TPU transfer film

Processing moderolls or sheets

Configuration details should be confirmed before quotingSee project confirmation

View original catalog listing

Inside the configuration

The parts behind the process.

DOWIN's original page shows these systems or options. The final components and supplier models belong in a confirmed quotation.

Ask about this configuration

Camera registration: Reads printed edges or alignment marks to position cut paths for repeated artwork.
Film handling: The source describes roll-to-roll and sheet processing. Feeder arrangement depends on the final configuration.
Cut mode: Both kiss-cut and through-cut workflows are discussed. Layer stack and backing integrity require a material test.
Nesting and layout: Arrange multiple artwork shapes on a film sheet or roll; verify registration and spacing with production files.

Applications / DW-9070

Application showcase.

Explore the materials and cutting tasks for this machine.

Crystal label badge with a laser-cut contour

Crystal labels

Contour-cut crystal labels and heat-transfer decorations into logos, lettering, and badge shapes.

Material: Crystal label and heat-transfer decoration sheet
Production task: Cut custom logos, lettering, and decorative patterns
Selection focus: Contour accuracy, small-detail edges, and sheet layout

View application guide

Printed DTF transfer film with contour-cut cartoon graphics

DTF film

Separate grouped transfer graphics from printed DTF film for downstream pressing.

Material: Printed DTF transfer film
Production task: Cut logos, labels, and custom graphics
Selection focus: Recognition accuracy, compact handling, and cut path spacing

View application guide
