DW-1812CCD

Vision Auto Feeding Laser Cutting Machine

A top-camera fabric laser cutter that captures printed outlines across the work area, creates the cutting path, and processes roll materials automatically.

Best fit: Printed sportswear, labels, flags, footwear, bags, leather products, toys, upholstery, and home textiles

Working area: 1800 × 1200 mm
Laser power: 130 / 150 W
Vision system: Top-mounted Hikrobot industrial camera
Feeding: Automatic conveyor and rolling system

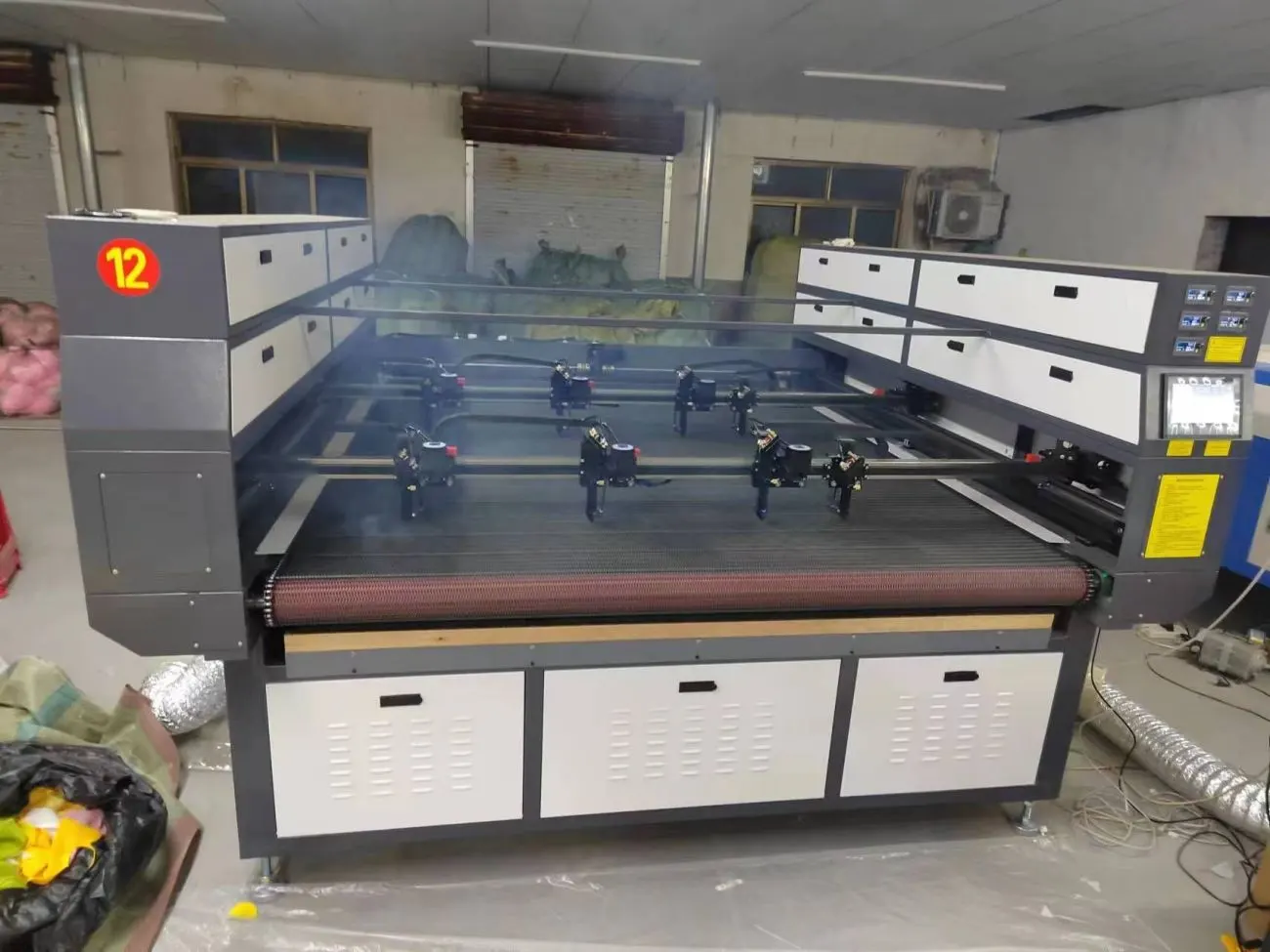

Laser heads: One or two, optional

Request a quote Compare models

Product overview / DW-1812CCD

Built around your material and production flow.

The DW-1812CCD uses an overhead camera and automatic feeding to cut flexible materials according to their visible outlines. DOWIN describes taking an image of the work area, recognizing the pattern contour, and cutting printed fabric without requiring the original artwork file for each piece.

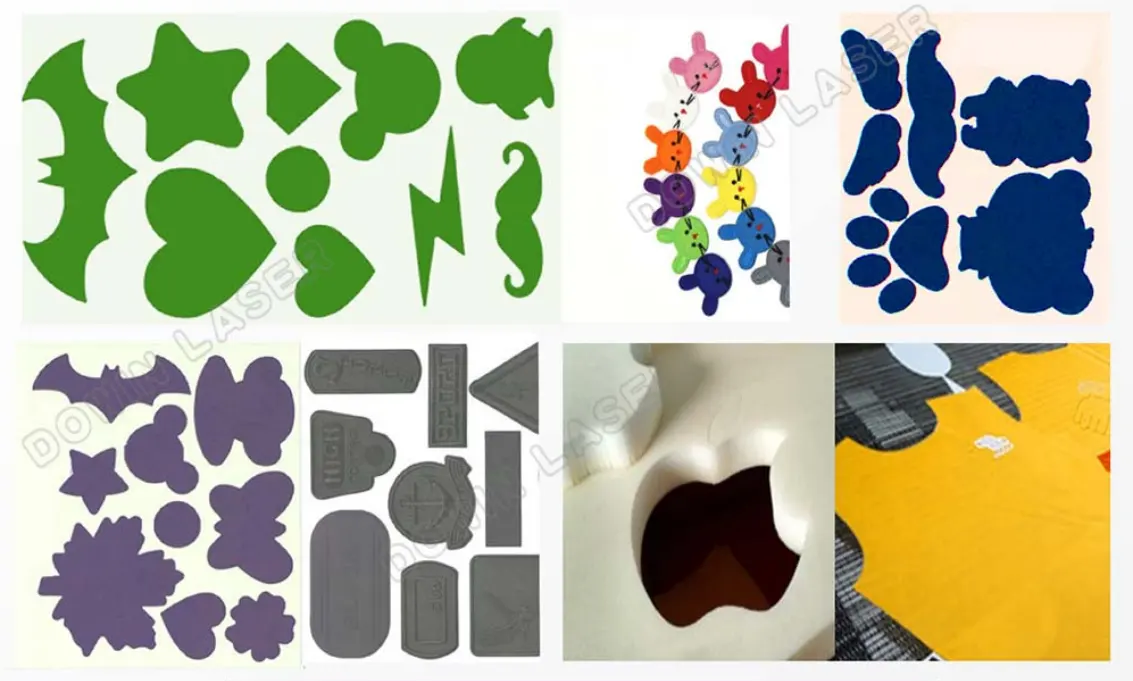

The source highlights cycling apparel and beach flags as example applications, alongside other printed textiles, footwear, and home textile parts. Confirm vision contrast, print distortion, and roll behavior on the intended material.

See how it works

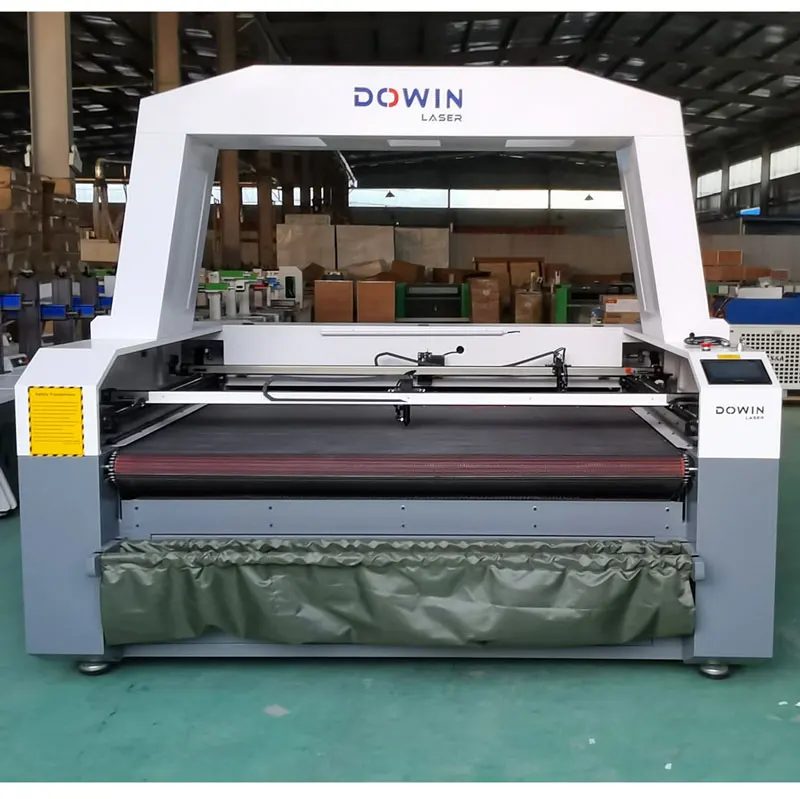

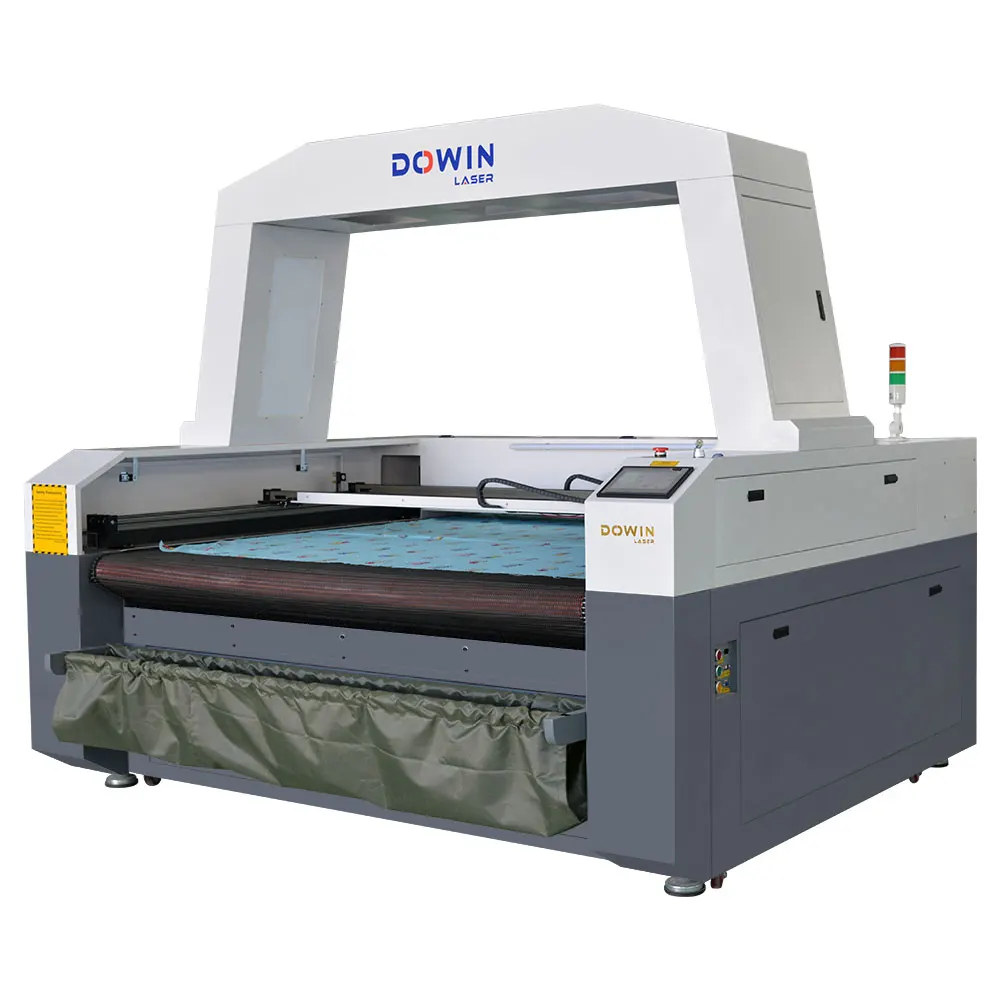

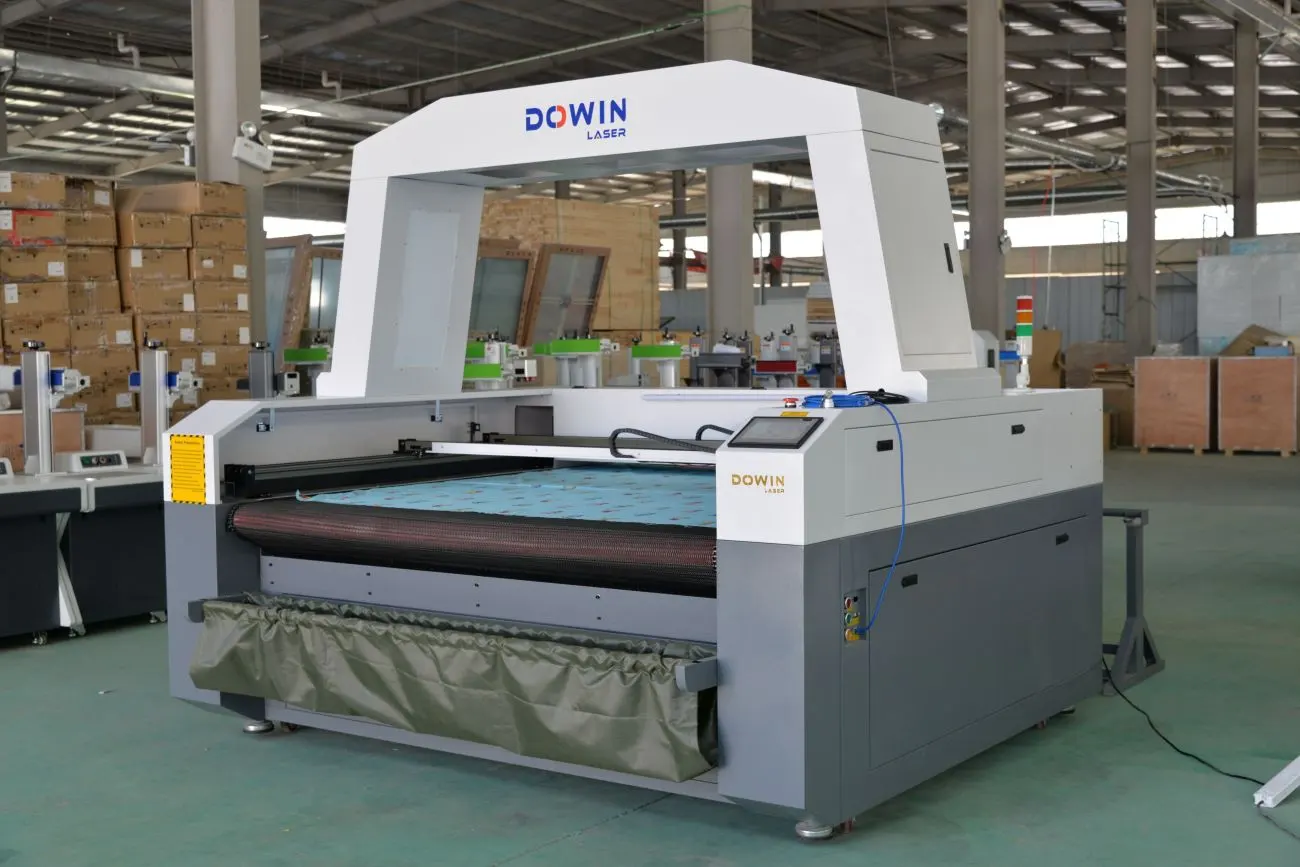

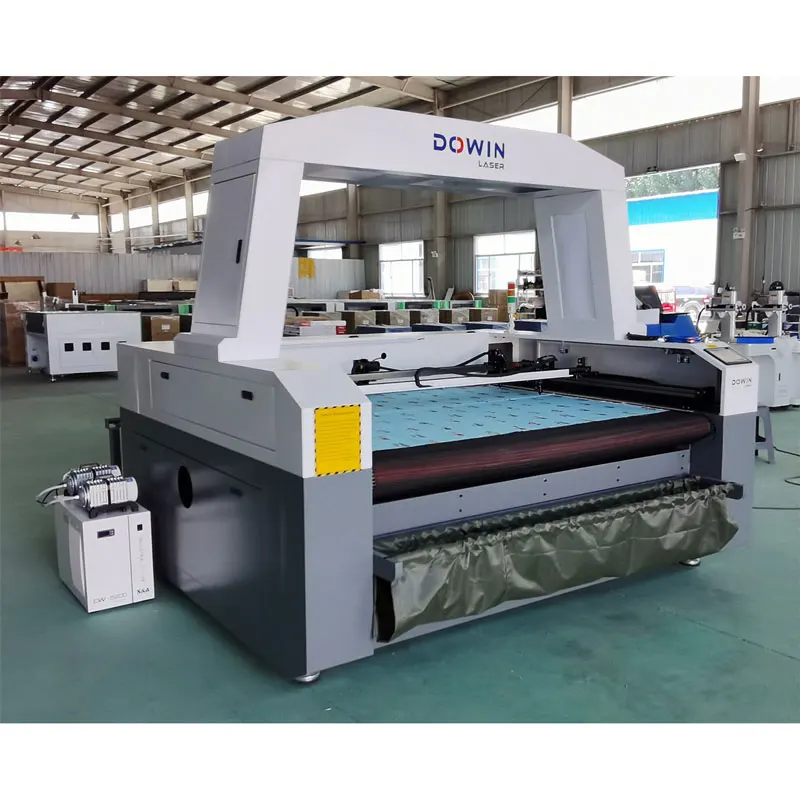

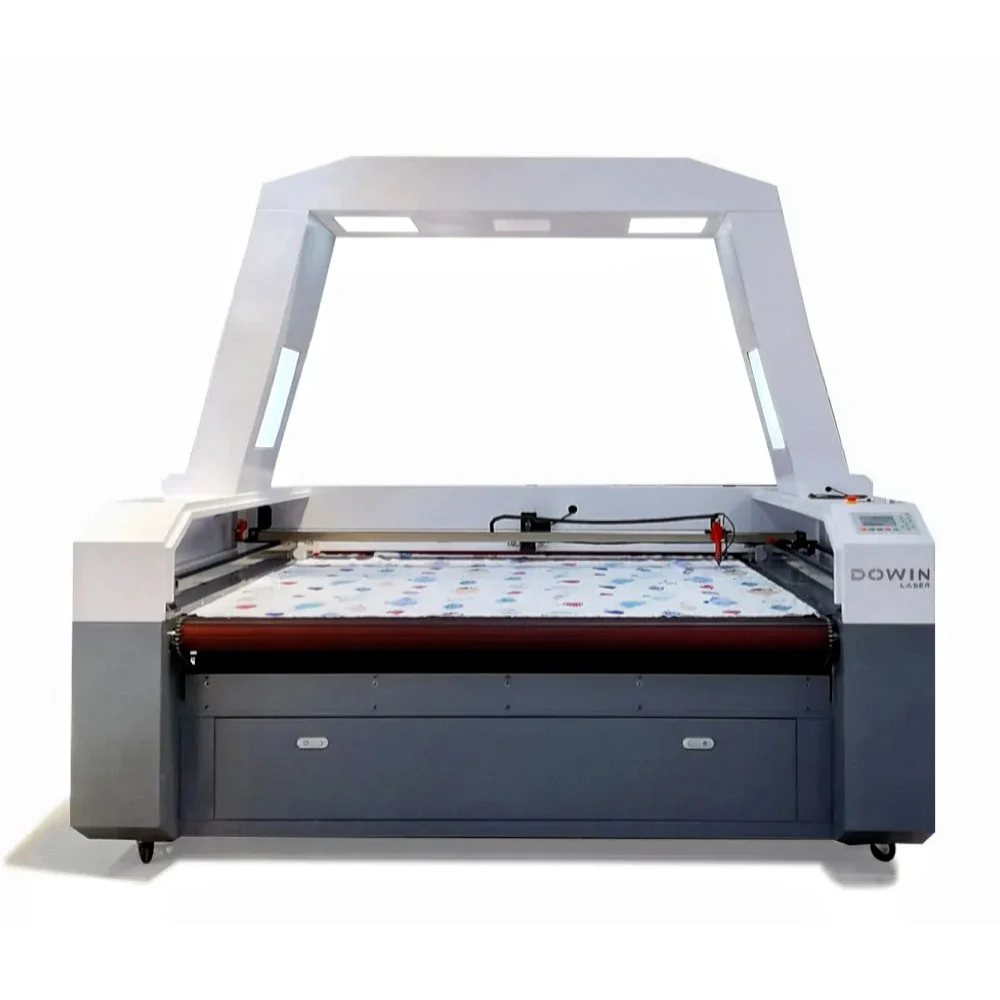

Official DOWIN DW-1812CCD machine view — Equipment image from DOWIN's published product page.

From material to finished part

How DW-1812CCD works.

The working sequence below follows the capabilities described in DOWIN's original listing. Feed, vision, laser, and collection settings should be tested on your material.

01
Stage the roll

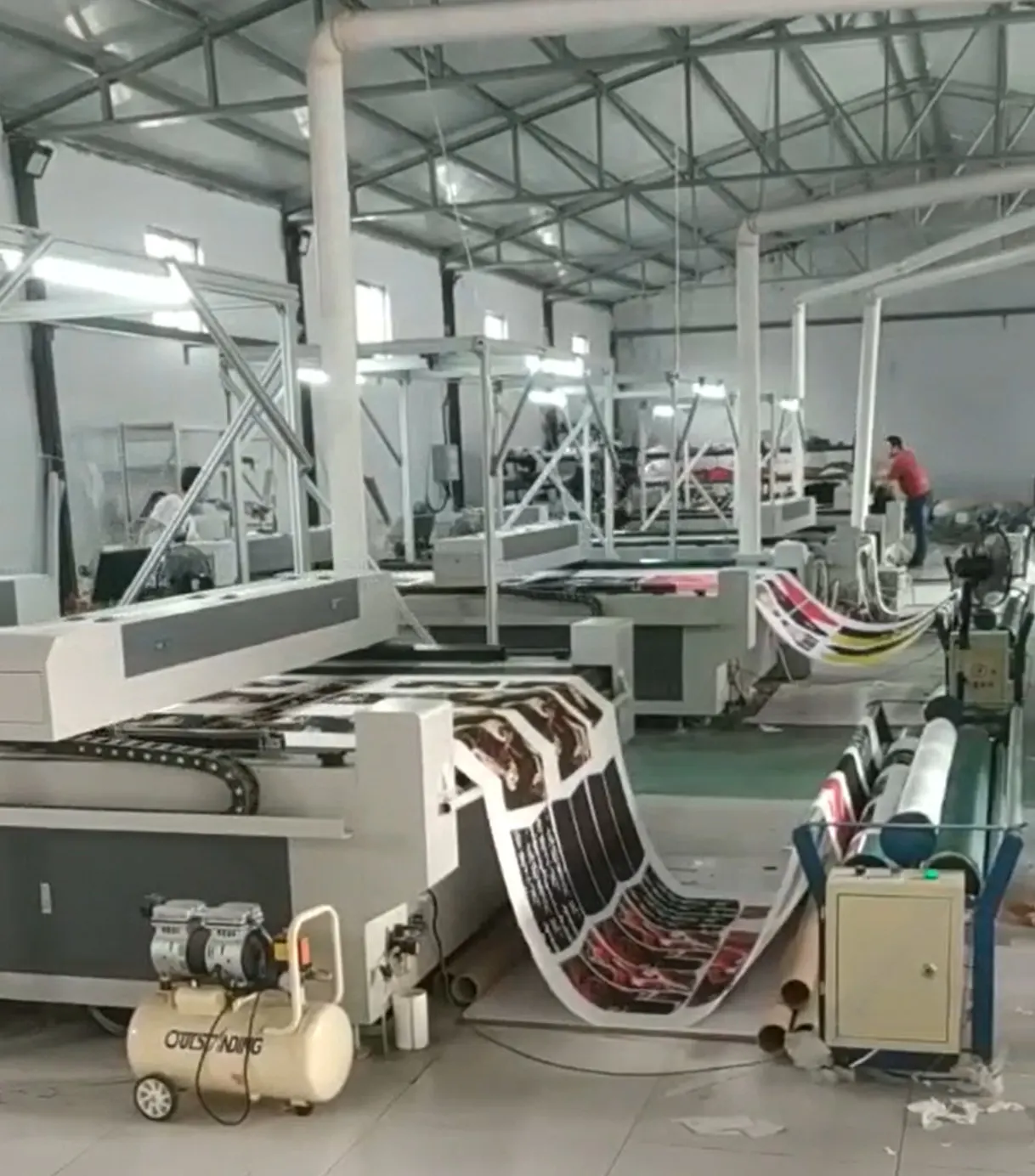

Place printed textile on the feeding system and bring the next section into the working area.
02
Capture the area
The overhead camera images the material and identifies visible shapes.
03
Generate the contour
Vision software locates the printed edge and derives a path without a separate original drawing in the described workflow.
04

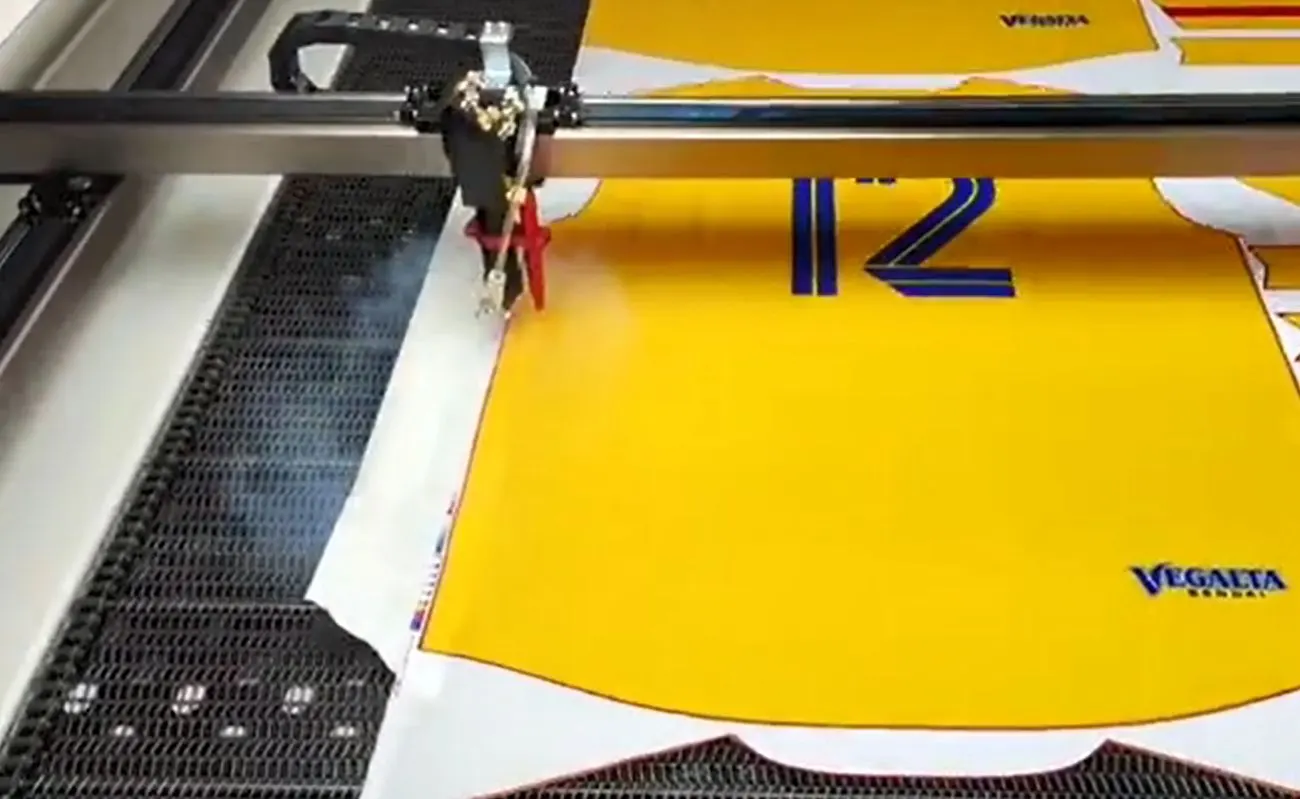

Cut and feed

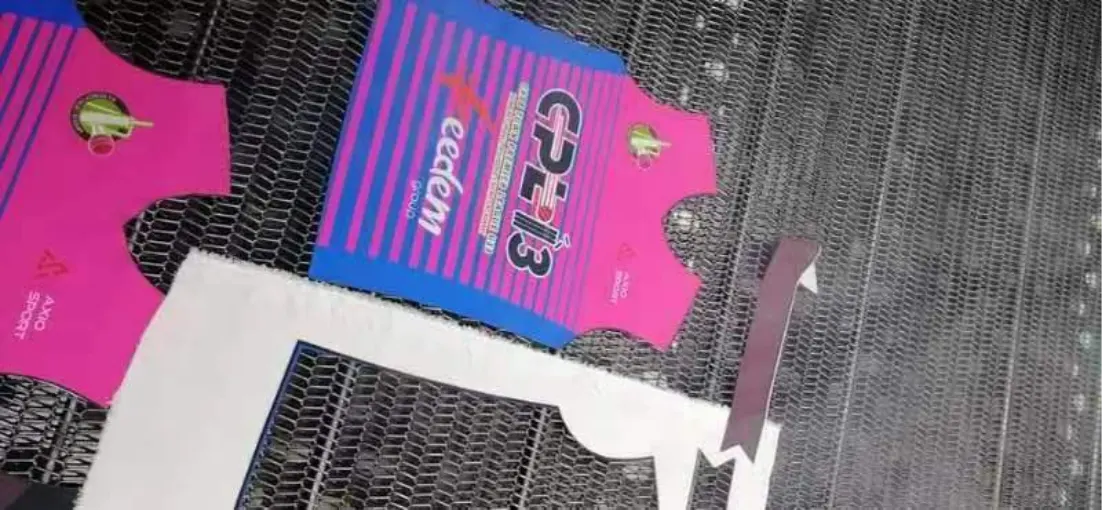

The CO2 laser follows the registered outline, then the feeder advances the material.

Machine capabilities

What this configuration is designed to do.

Full-area camera capture

Direct contour recognition without original design files

Vision and non-vision modes

Automatic feeding

Laser-sealed textile edges

Published specifications

Cutting speed0–18000 mm/min

Resolution0.025 mm

Reset positioning accuracy±0.01 mm

Supported formats include BMP, PLT, DXF, G-code, DST, AI, and common design filesSee project confirmation

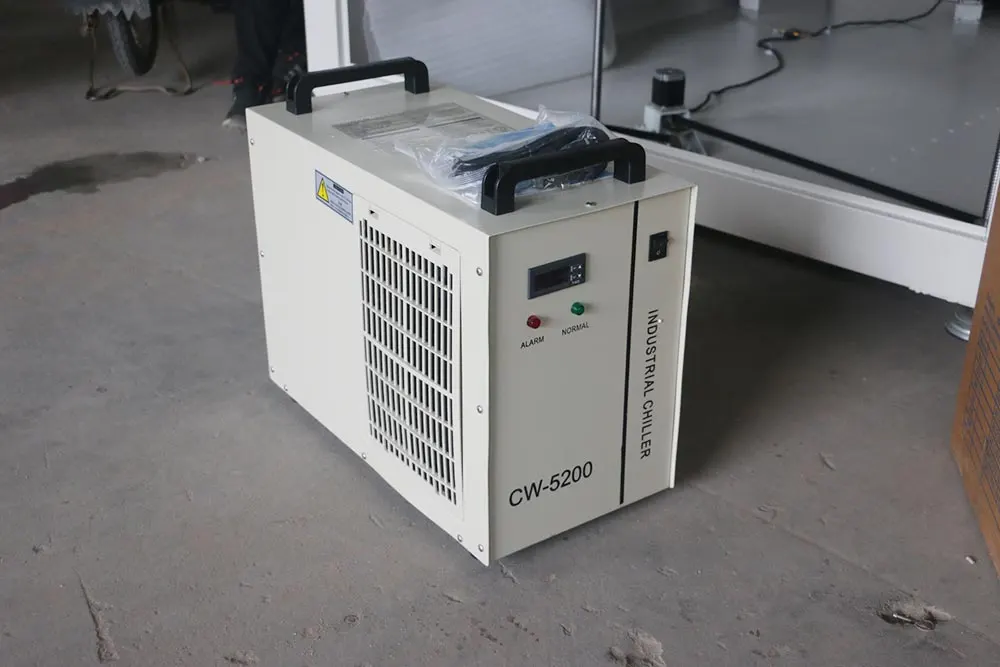

CoolingS&A CW-5200

View original catalog listing

Inside the configuration

The parts behind the process.

DOWIN's original page shows these systems or options. The final components and supplier models belong in a confirmed quotation.

Ask about this configuration

Top-mounted camera: Captures the work area for contour recognition on printed or embroidered flexible materials.

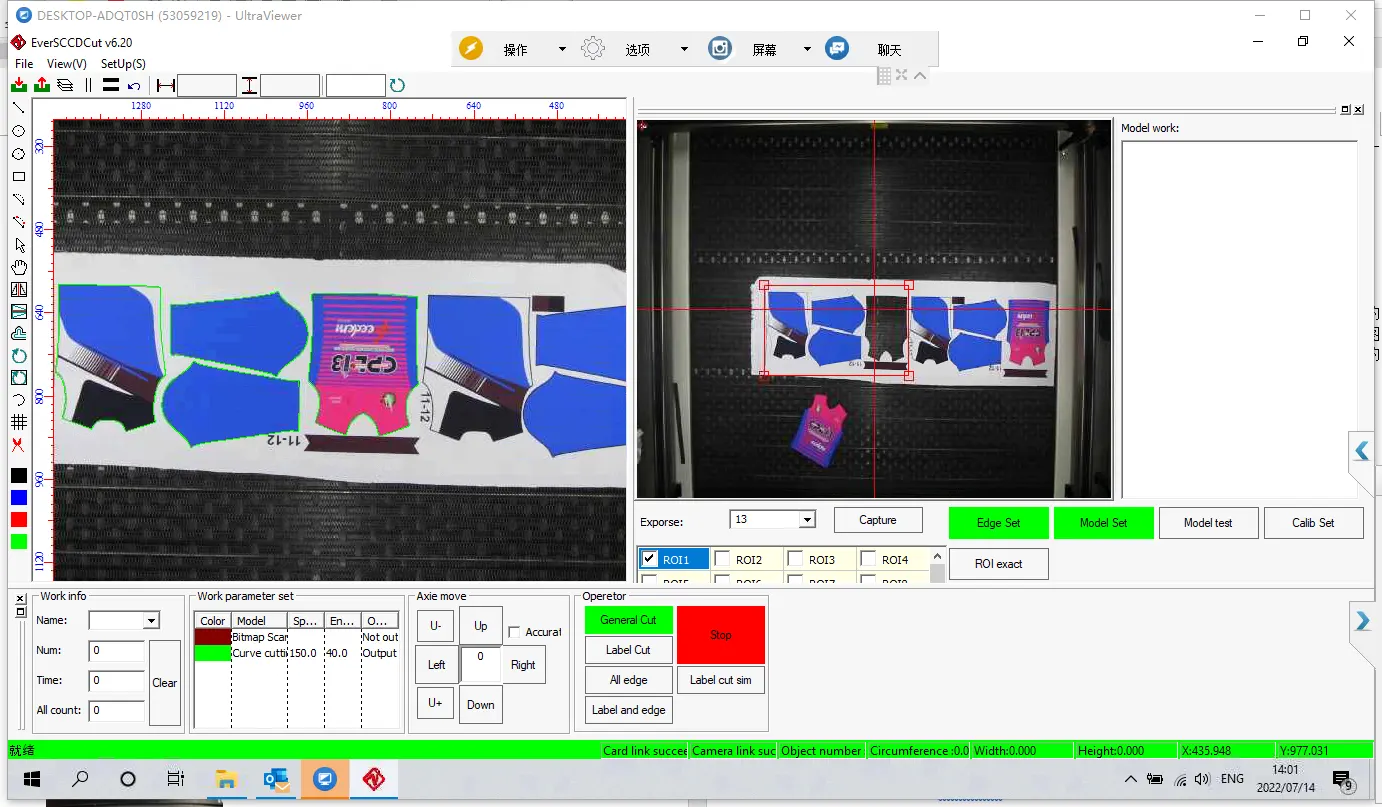

Vision software: Converts detected outlines into a laser path; source also describes a non-vision mode.

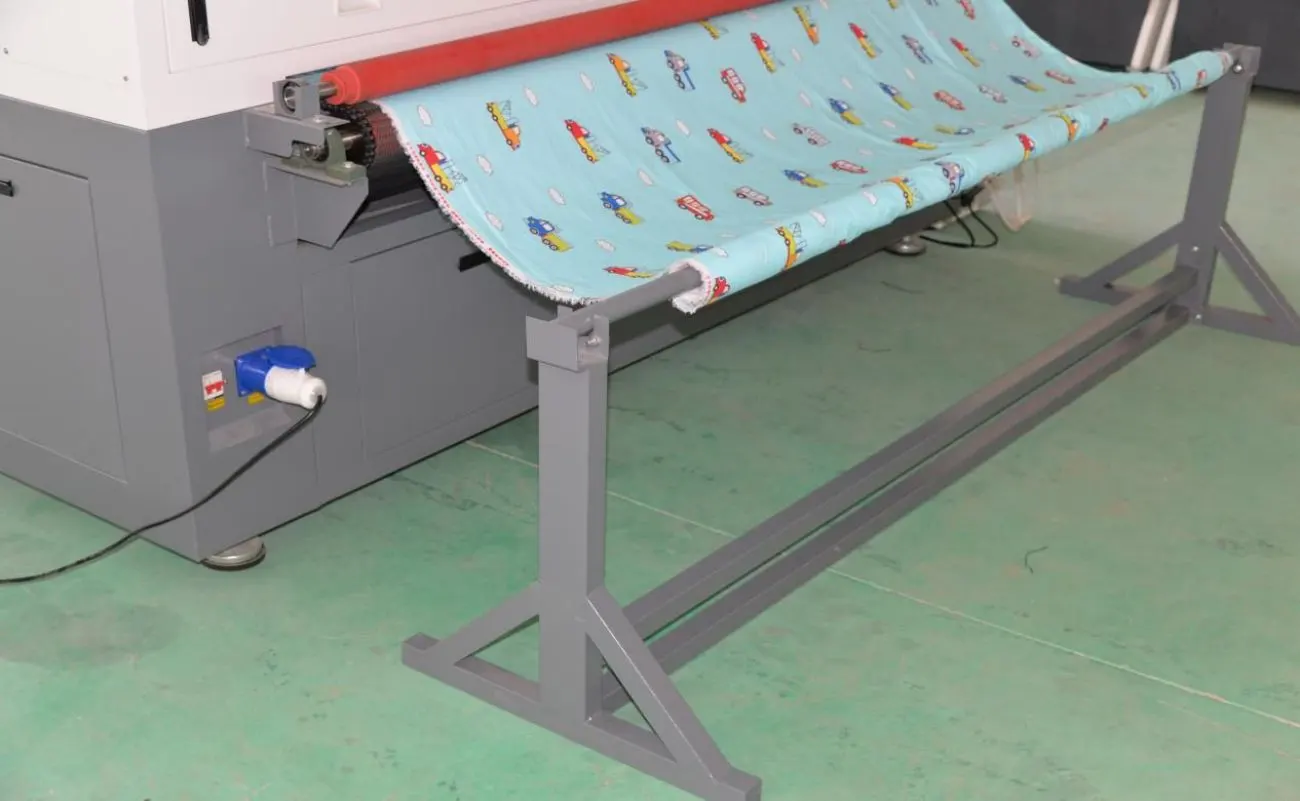

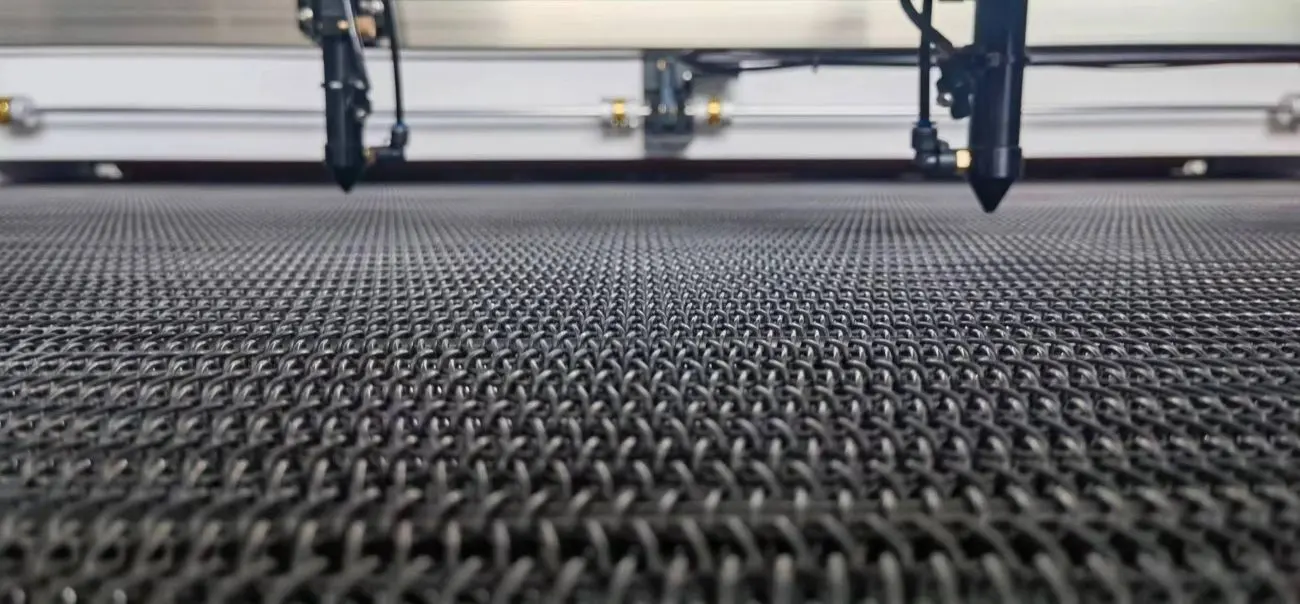

Automatic conveyor and roll feed: Advances flexible material between cutting cycles.

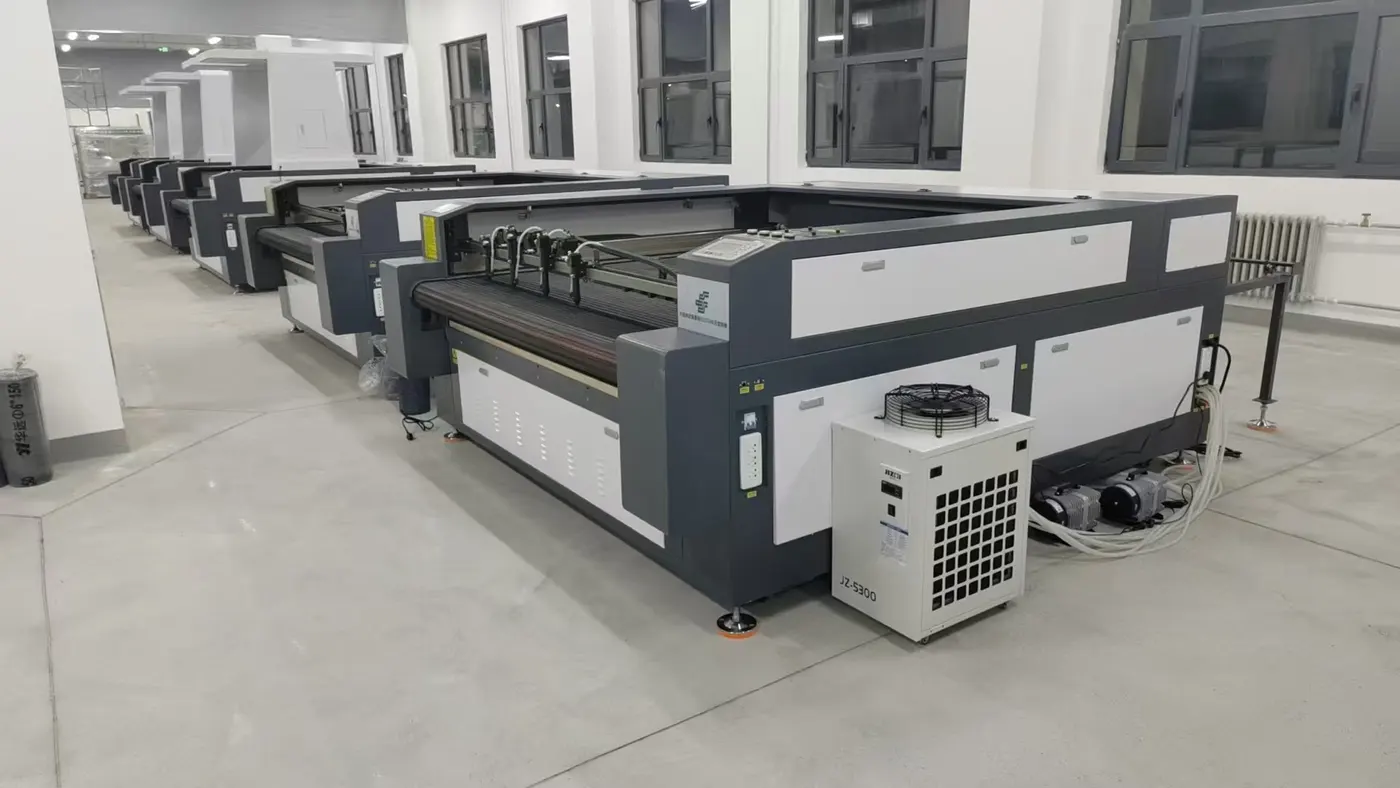

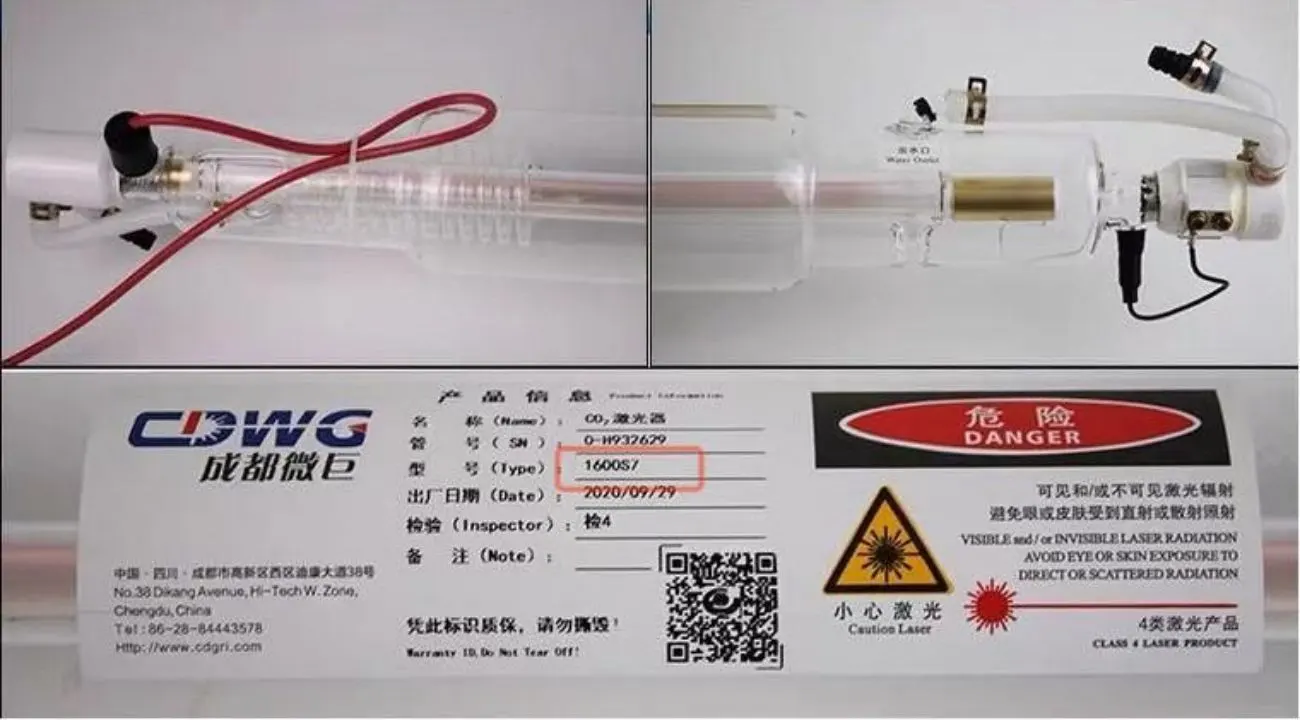

Laser and chiller: The source names CO2 tube and water-cooling options; final brands and power should be checked against a quotation.

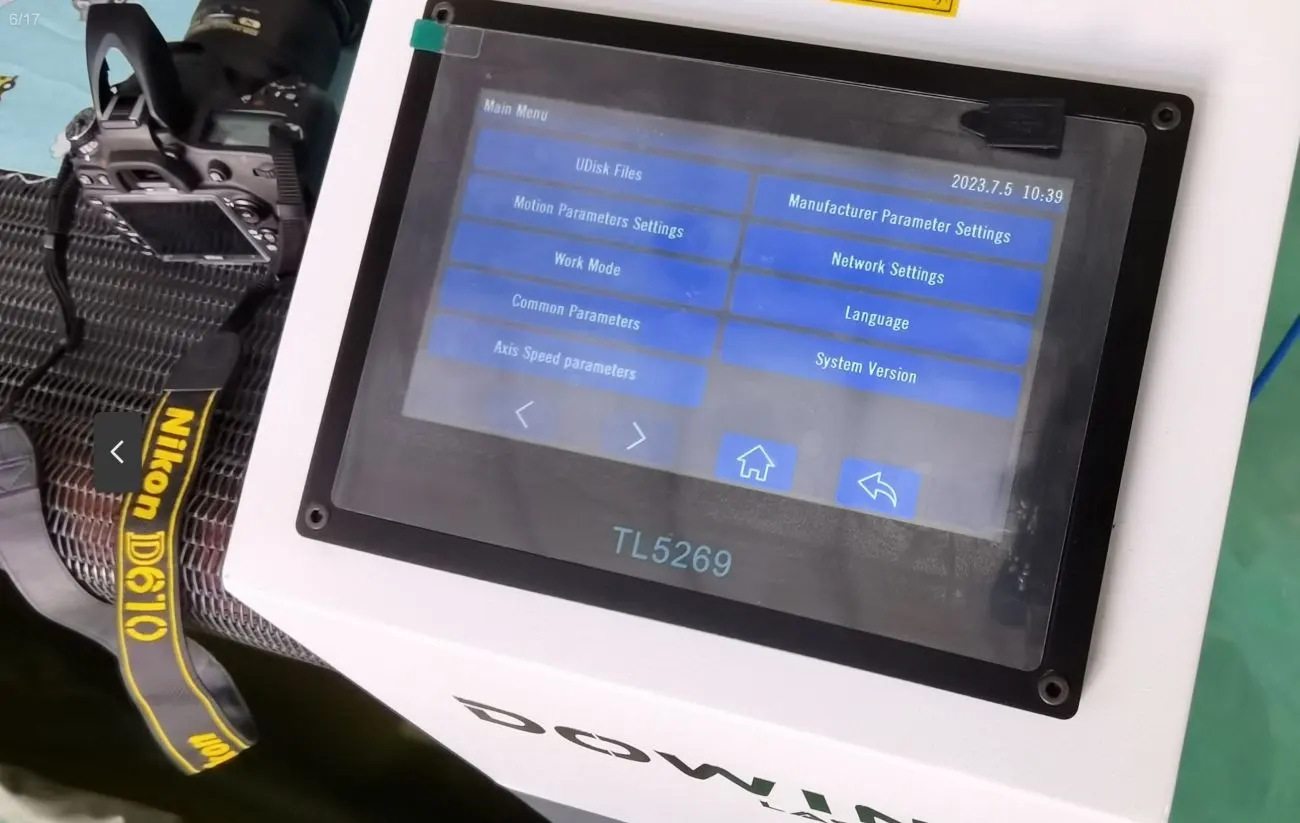

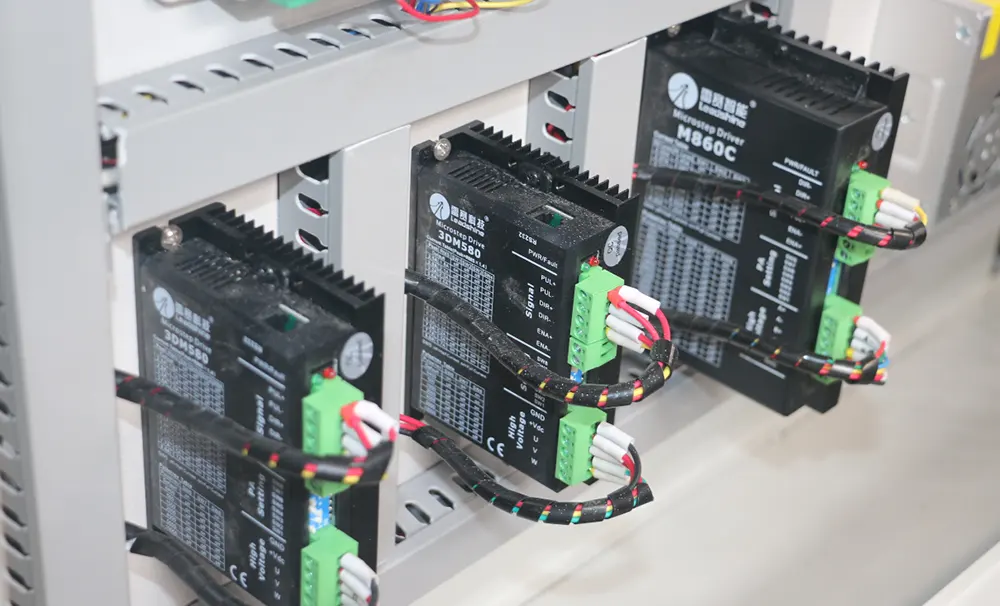

Motion and control: Linear modules, drive motors, and a textile-focused control interface are shown on the product page.
